Tracked Conventional Tail Excavators

Our mini and compact excavators play out their strengths on small construction sites in particular. They can be quickly transported to inaccessible locations with a crane and are maneuverable on the construction site thanks to their compact dimensions. In this way, the work can be done more efficiently with these construction machines.

Products Operating weight Digging depth max. L x W x H Engine performance Dump height max.
Tracked Conventional Tail Excavators - 803 dual power
803 dual power » 		2,319.24 - 2,451.52 lb 69.41 in 111 x 28 x 89 in 12.86 hp 79.27 in

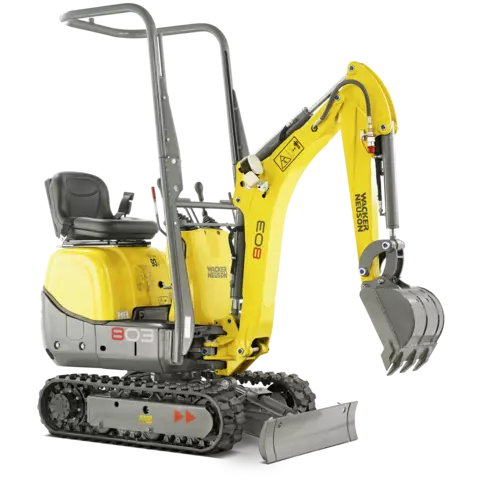

Tracked Conventional Tail Excavators - 803
803 » 		2,268.53 - 2,400.81 lb 69.41 in 111 x 28 x 89 in 13.27 hp 79.27 in
Tracked Conventional Tail Excavators - ET16
ET16 » 		33,701 - 3,792 lb 95 in 143 x 39 x 90 in 18.49 hp 93.4 in
Tracked Conventional Tail Excavators - ET18
ET18 » 		3,802.94 - 4,856.73 lb 94.37 in 151.7 x 39 x 90.1 in 18.49 hp 98.82 in
Tracked Conventional Tail Excavators - ET20
ET20 » 		4,420.22 - 5,123.49 lb 105.63 in 159 x 39 x 90 in 18.49 hp 106.81 in
Tracked Conventional Tail Excavators - ET24
ET24 » 		4,850.12 - 5,608.5 lb 102.44 in 158 x 55 x 97 in 18.49 hp 108.19 in
Tracked Conventional Tail Excavators - ET35
ET35 » 		7,605.87 - 9,614.26 lb 137.78 in 207.5 x 64.2 x 98.1 in 24.39 hp 131.48 in
Tracked Conventional Tail Excavators - ET42
ET42 » 		8,888.95 - 10,634.99 lb 139.63 in 202.75 x 68.95 x 98.26 in 45.96 hp 140.78 in
Tracked Conventional Tail Excavators - ET65
ET65 » 		13,399.56 - 15,330.79 lb 165.2 in 241 x 77 x 98 in 56.28 hp 154.13 in
Tracked Conventional Tail Excavators - ET90
ET90 » 		19,202 - 22,019.5 lb 182.5 in 280 x 88.6 x 101 in 74.24 hp 199.6 in
Tracked Conventional Tail Excavators - ET145
ET145 » 		34,283.7 - 36,012.1 lb 213.8 in 304 x 98 x 110 in 73.7 hp 221.43 in
